Multi-Packer Systems (MP)
The Multi-Packer System is a versatile and cost-effective multiple packer system that can already be installed in very small borehole diameters (from 50 mm).
Specifications of the MP system

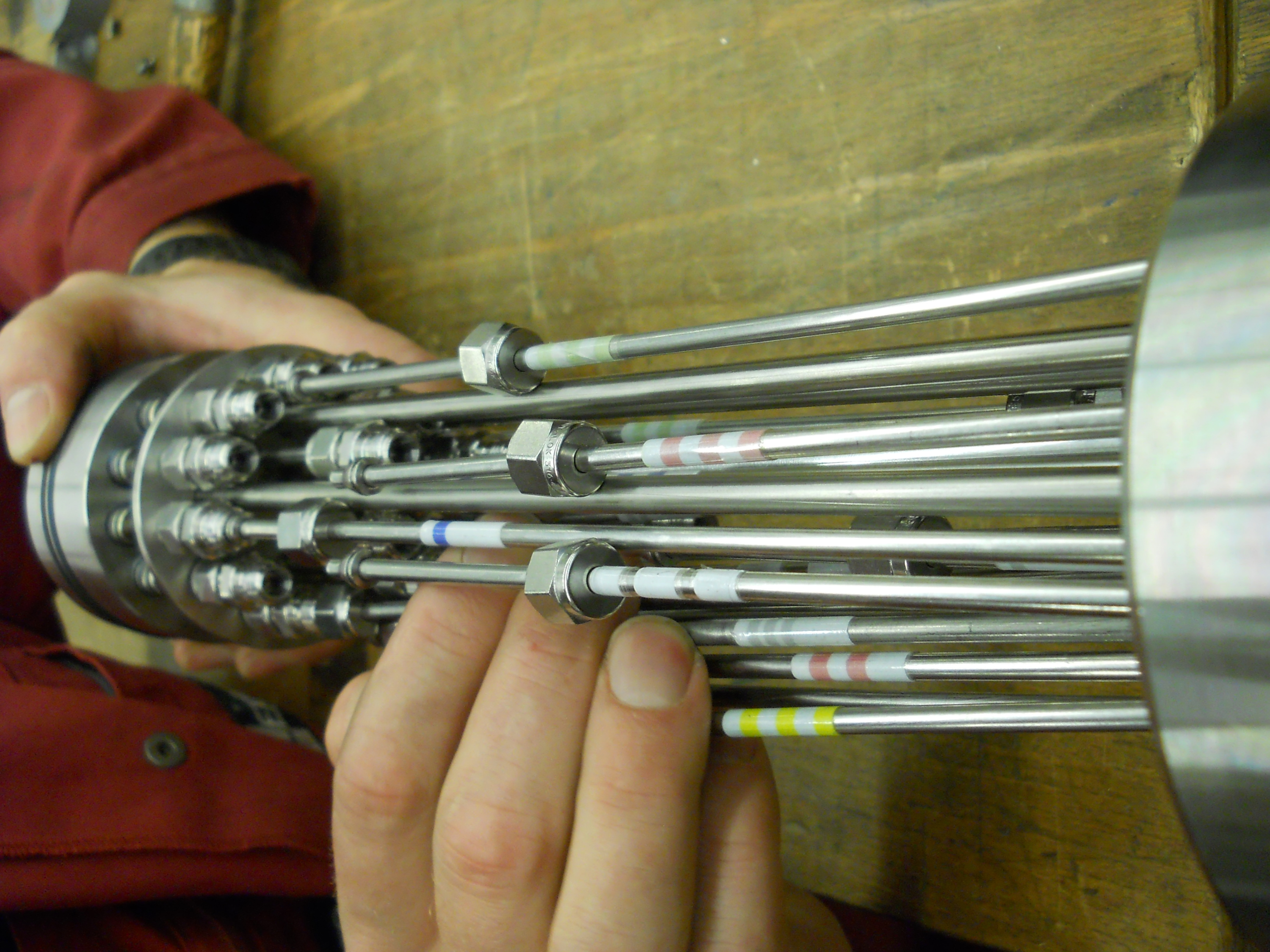

- Each observation interval is accessible via polyamide or stainless steel lines
- Pressure measurement and sampling at the borehole mouth
- Multiple ports per interval possible, e.g. for circulation or venting
- Up to 10 independent observation intervals
- Interval lengths from 15 cm
- Simple system design
- Accessories such as sensors or pump at the monitoring head
- Cost-effective, for borehole diameters from 50 mm
